| 1. Number Systems: Sign Extension |
|
Write the following signed binary, octal and hex numbers as 16-bit
signed binary number. You need to do a sign-extension. a) (01010011) 2 b) (1010) 2 c) (7A)h d) (9C)h e) (5610)o f) (247)o |
| 2.Boolean Algebra |
|
Simplify the following logical expressions and determine which
boolean laws is used. a) A'B+ABC'+ABC b) AB+A(CD+CD') c) A'+AB' d) (A+B’+C’)(A+B’C) |
| 3.Definition: |
| Explain De Morgan Law and Duality Principle and give an example for each. |
| 4.Logic Gates: |
|
Draw the circuits and form the truth table for the following
expressions : a) f(x,y,z)=xy'+x'z+x'yz' b) f(x,y,z)=x(+)y(+)z |
| 5.Full Adder |
| Form the truth table for a Full Adder, Simplify the Sum and Carry funcion and draw the circuit |

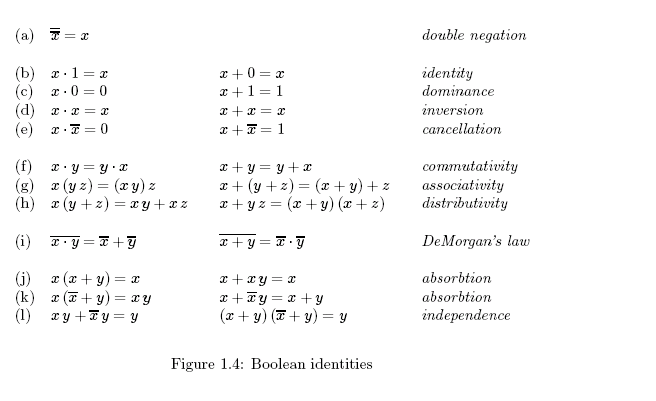

HELP NOTES
